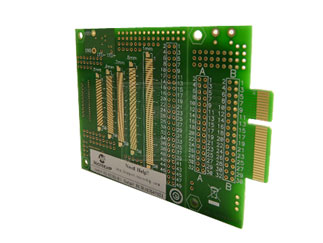

The Graphics Display Prototype Board (set of three) provides an easy path to integrate a graphics LCD panel of developer’s choice to one of the following platforms.
1) PIC24FJ256DA210 development board (DM240312).
2) Graphics LCD Controller PICtail Plus SSD1926 Board(AC164127-5)
The Graphics Display Prototype Board (set of three) provides an easy path to integrate a graphics LCD panel of developer’s choice to one of the following platforms.
PIC24FJ256DA210 development board (DM240312)
Graphics LCD Controller PICtail™ Plus SSD1926 Board (AC164127-5)
Microchip display connector V1
Footprints of flat flexible connectors (FFC) with up to 50-pins with varying pitch sizes (1.0, 0.8, 0.7, 0.6, 0.5 mm), and VESA FPDI-1
Prototyping area for power supply circuits
Flexible mapping of V1 connector signals to FFC connector signals
Compatible with Prototype PICtail Plus™ Daughter Board (AC164126)
