Graphics LCD PICtail Plus Daughter Board

Product-Category:	PIC
Availability:	In stock 0 - You May Backorder.
Part No :	AC164127
Quantity:	Please enter Quantity!

Coupon Code:

Rs.(Incl. of Customs Duty & Import Freight.)

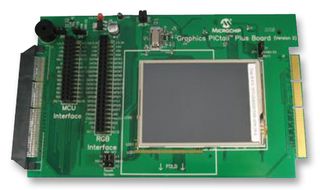

The AC164127 is a Graphics PICtail™ Plus daughter board 2. It is a demonstration board for evaluating graphic LCD display solution and graphics library for 16bit and 32bit microcontrollers. It is an expansion board compatible with the explorer 16 development board. To get started, an explorer 16 development board is required. The Graphics PICtail Plus daughter board 2 should be inserted into expansion connector, J9, of the explorer 16 board. The graphics PICtail Plus daughter board 2 can be configured with several jumpers. The Graphics PICtail Plus daughter board 2 can be used in conjunction with the graphics library for microcontrollers.

QVGA (320x240) LCD module with built in graphics controller and resistive touch screen
Stand alone graphics controller, solomon systech SSD1906
4Mbit (512Kx8) flash memory for additional data storage
Featured with sound buzzer

AC164127Infosheet
GraphicsPICtailplusdaughterboardinfosheet
