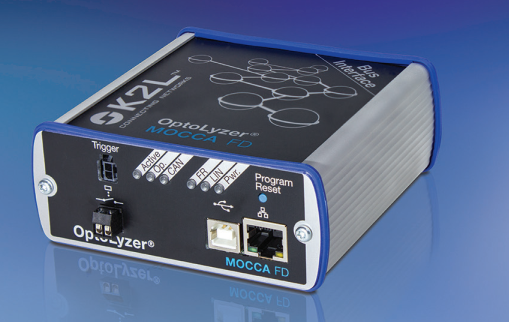

The OptoLyzer MOCCA FD is a high-performance automotive bus interface supporting CAN FD, CAN and LIN developments. The tool can be applied in different phases of the automotive system/ECU development cycle, from prototyping and implementation to analysis and verification.
Bus Interfaces:
2 × CAN FD (up to 5 Mbps, these two interfaces can also be configured as CAN High-Speed, CAN Low-Speed or Single Wire CAN)
1 x FlexRay
4 × CAN High-Speed
6 x LIN
Configurable via the OptoLyzer Studio, Foundation Edition and K2L.Bus API
Generic trigger input and output (12V TTL) for detailed debugging support
Relay (up to 5A load) for power cycle testing
