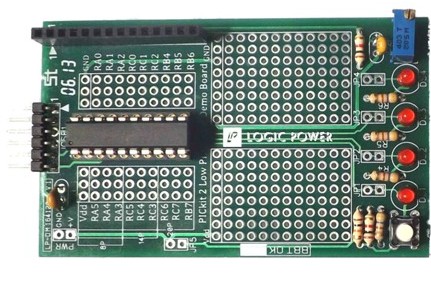

The DM164120-1 is a small demo board with a PIC16F690 on board and a small prototype area. Use it with a PICkit 3 to program your code via the 6-pin ICSP header on the board. The populated board gets bundled with the PICkit 2, when you order the LPPICkit2-DM164120-1
Low Pin Count Demo Board
Low Pin Count Demo Board
· 20-pin DIP with PIC16F690 microcontroller
· Four LEDs
· 10K pot to elaborate ADC functionality of PIC16 MCU’s.
· External Battery connection made available.
· Test points to access the I/O pins of the MCU.
· Surface mount prototyping area.
