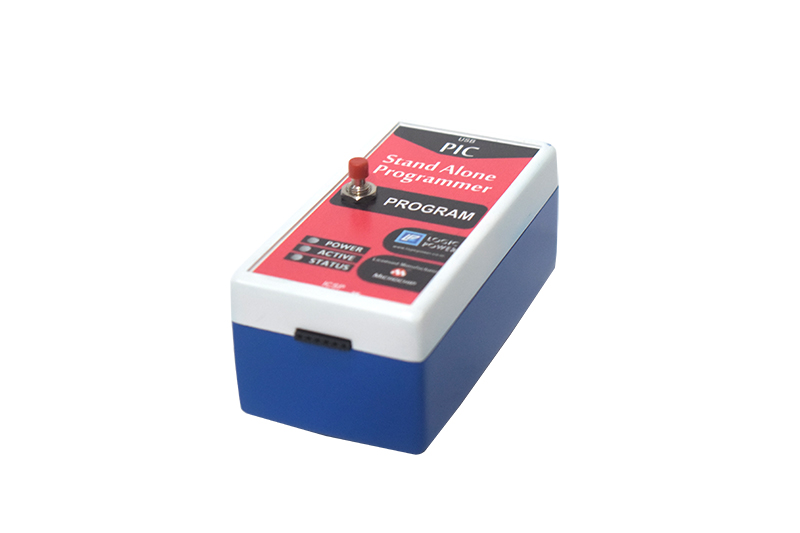

SinglePIC is a cost effective high-speed StandAlone Programmer for Microchip Flash Digital Signal Controller (DSC) and microcontroller (MCU) devices. The Programmer has 1 x independent programmer circuits each with its own EEprom image. SinglePIC is connected to MPLAB IDE or any other GUI running on a PC using a full speed USB interface to download only once inititally the hex image into programmers EEprom. SinglePIC can be connected to the target board via RJ-11 to ICSP connector (LPISCP-AC164110).
1. SinglePIC Standalone Programmer
2. 5V Power Adaptor
3. User manual
4. MPLAB CD containg sample codes
- Internal Programmer with its own EEPROM for storing Hex image and with its own LED status.
- Target device can be programmed independently i.e. without PC.
- One single PROGRAM switch to Successively program the devices.
- Uses the highly successful & proven Programmer-to-Go concept of PICkit 3 in MPLAB IDE & IPE with MASTER circuit for synchronization.
- No need to power target from external power source.
- Under Settings, select Power to target supplied by PICkit 3.
- SinglePIC programmer must be powered by USB only.
